螺牙規格：德制 PG

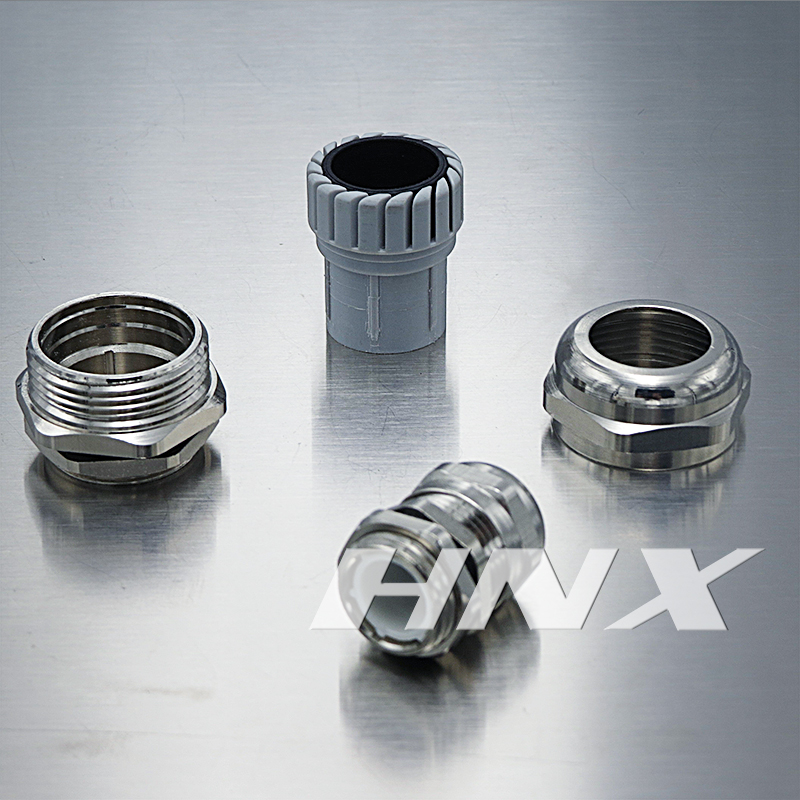

產品材質：接頭主體部位采用黃銅鍍鎳制成，夾緊件采用尼龍塑料（PA）制成，密封件和O型密封圈均采用丁腈橡膠（NBR）制成。
工作溫度：靜態：-40℃到100℃，短時間達120℃。動態：-20℃到80℃，短時間達100℃
螺紋長度： 短螺紋適合用于薄型機板的開孔或附有內螺紋的設備上，長螺紋適合接合厚型機板。螺紋加長型可定制。
產品特性：特殊夾緊爪與夾緊圈凹凸相扣之設計，配合迫緊頭裝配省時便利，夾緊電纜范圍大、抗拉力特強、可防水、防塵、抗鹽、耐酸堿、酒精、油脂及一般溶劑。
使用方法: 金屬電纜防水接頭是電纜的配套產品，接頭可將電纜鎖緊，另一端可接入設備箱體上，也可以根據選用螺紋接入進出口為內螺紋的電動設備上。
更多選擇：可根據客戶實際需要，特別定制。需要訂購時歡迎來電咨詢。
| 德制螺紋PG型系列 |
| 產品編號 |
螺紋規格 AG |
適用電纜 |
螺紋外徑 |
機板口徑 (mm) |
螺紋長度 GL(mm) |
扳手徑 (mm) |
| HX-NPPG7A/EX |
PG7 |
6.5-3 |
12.5 |
12.5-12.7 |
7 |
14 |
| HX-NPPG7B/EX |
PG7 |
5-2 |
12.5 |
12.5-12.7 |
7 |
14 |
| HX-NPPG9A/EX |
PG9 |
8-4 |
15.2 |
15.2-15.4 |
8 |
17 |
| HX-NPPG9B/EX |
PG9 |
6-2 |
15.2 |
15.2-15.4 |
8 |
17 |
| HX-NPPG11A/EX |
PG11 |
10-5 |
18.6 |
18.6-18.8 |
8 |
20/21 |
| HX-NPPG11B/EX |
PG11 |
7-3 |
18.6 |
18.6-18.8 |
8 |
20/21 |
| HX-NPPG13.5A/EX |
PG13.5 |
12-6 |
20.4 |
20.4-20.6 |
8 |
22 |
| HX-NPPG13.5B/EX |
PG13.5 |
9-5 |
20.4 |
20.4-20.6 |
8 |
22 |
| HX-NPPG16A/EX |
PG16 |
14-10 |
22.5 |
22.5-22.7 |
9 |
24 |
| HX-NPPG16B/EX |
PG16 |
12-6 |
22.5 |
22.5-22.7 |
9 |
24 |
| HX-NPPG21A/EX |
PG21 |
18-13 |
28.3 |
28.3-28.5 |
9 |
30 |
| HX-NPPG21B/EX |
PG21 |
16-9 |
28.3 |
28.3-28.5 |
9 |
30 |
| HX-NPPG25/EX |
PG25 |
22-15 |
32 |
32-32.2 |
10 |
35 |
| HX-NPPG29A/EX |
PG29 |
25-18 |
37 |
37-37.2 |
11 |
40 |
| HX-NPPG29B/EX |
PG29 |
20-13 |
37 |
37-37.2 |
11 |
40 |
| HX-NPPG36A/EX |
PG36 |
33-25 |
47 |
47-47.2 |
12 |
50 |
| HX-NPPG36B/EX |
PG36 |
26-20 |
47 |
47-47.2 |
12 |
50 |
| HX-NPPG42A/EX |
PG42 |
38-32 |
54 |
54-54.2 |
13 |
57 |
| HX-NPPG42B/EX |
PG42 |
31-25 |
54 |
54-54.2 |
13 |
57 |
| HX-NPPG48A/EX |
PG48 |
44-37 |
59.3 |
59.3-59.5 |
14 |
64 |
| HX-NPPG48B/EX |
PG48 |
35-29 |
59.3 |
59.3-59.5 |
14 |
64 |
|
